Lizingu i Tadano GR-700E-1-00211 + JIB ROUGH TERRAIN CRANE/RT CRANE

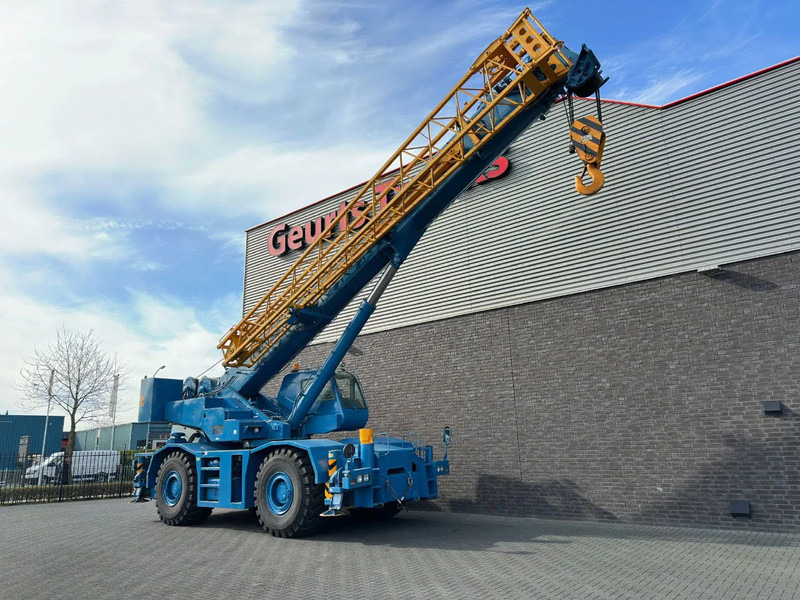

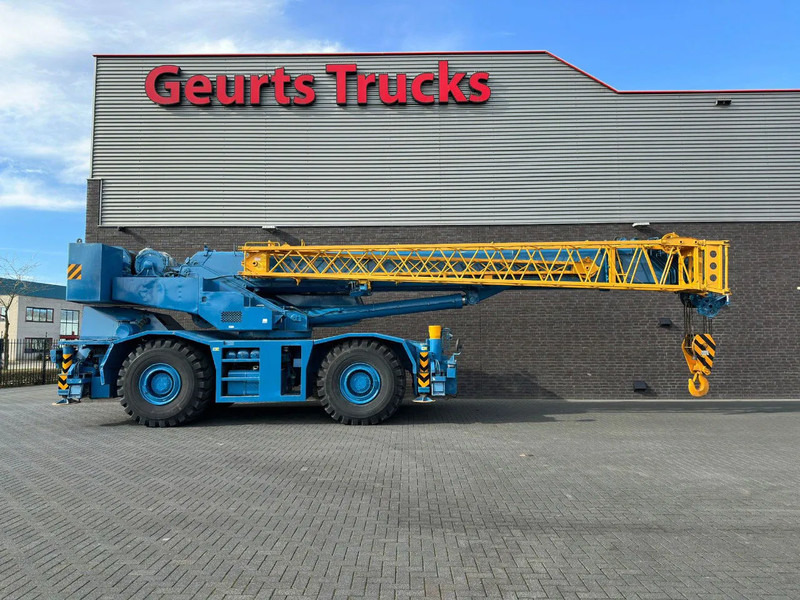

TADANO GR-700E-1-00211 ROUGH TERRAIN CRANE + JIB

YOM 2008

ONLY 6034 WORKING HOURS !!!

CE-CERTIFICATE

WEIGHT 48.485 KG

MAX LIFT CAPACITY 70 TON AT 3 M WORKING RADIUS

MAX WORKING HIGH MAIN BOOM 44 METER

MAX WORKING HIGH WITH JIB 64 METER !!

MAX RADIUS 41 METER

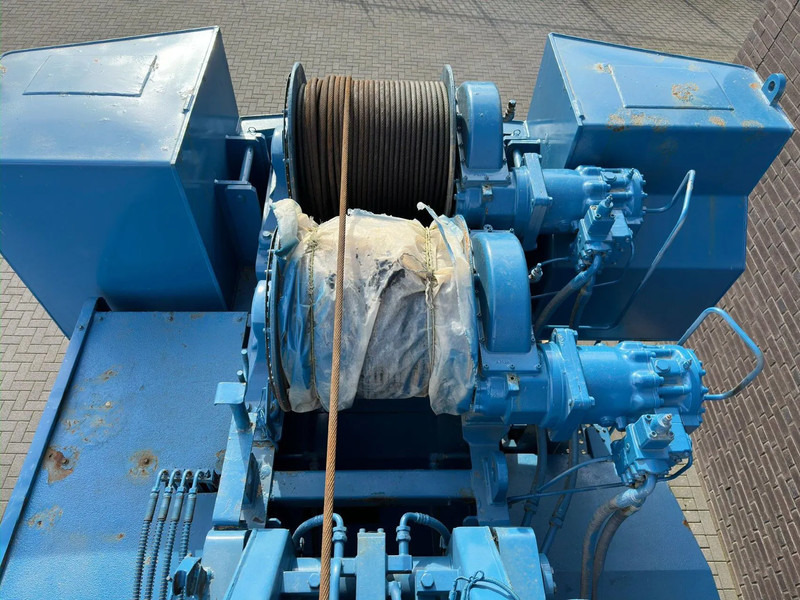

2 BIG HYDAULIC WINCH

4 SHEAVE HOOK BLOCK 40.000 KG

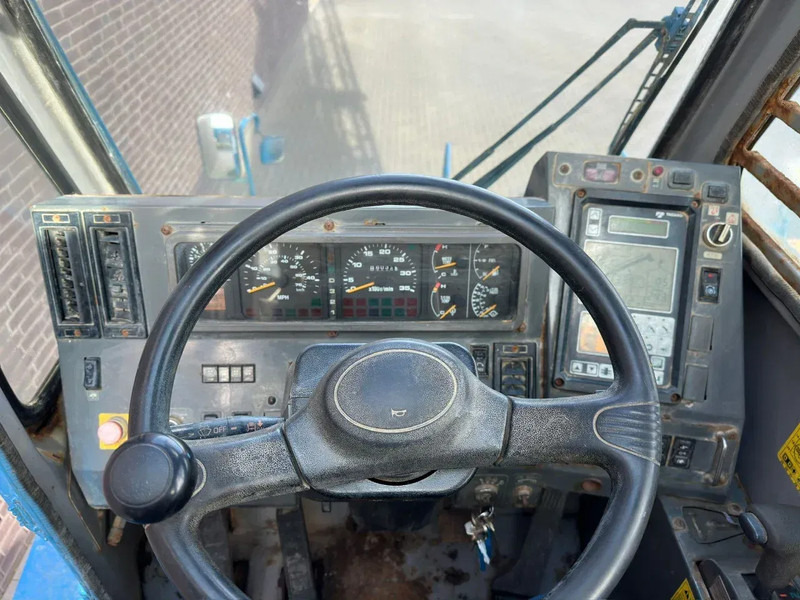

CAB WITH AIRCO AND HEATER

4X HYDRAULIC TELESCOPIC OUTRIGGERS

TIRE SIZE 29.5-25

DIMENSION

Overall length approx. 14,075 mm

Overall width approx. 3,315 mm

Overall height approx. 3,800 mm

ENGINE Model: MITSUBISHI 6M60-TLU3B [EUROMOT Stage III A] U.S. EPA

4 cycle, turbo charged and after cooled, 6 cylinder in line,

direct injection, water cooled diesel engine.

Piston displacement 7.54 L

Bore x stroke 118 mm x 115 mm

Max. output 200 kW at 2,600 min-1 {rpm}

Max. torque 785 N-m at 1,400 min-1 {rpm}

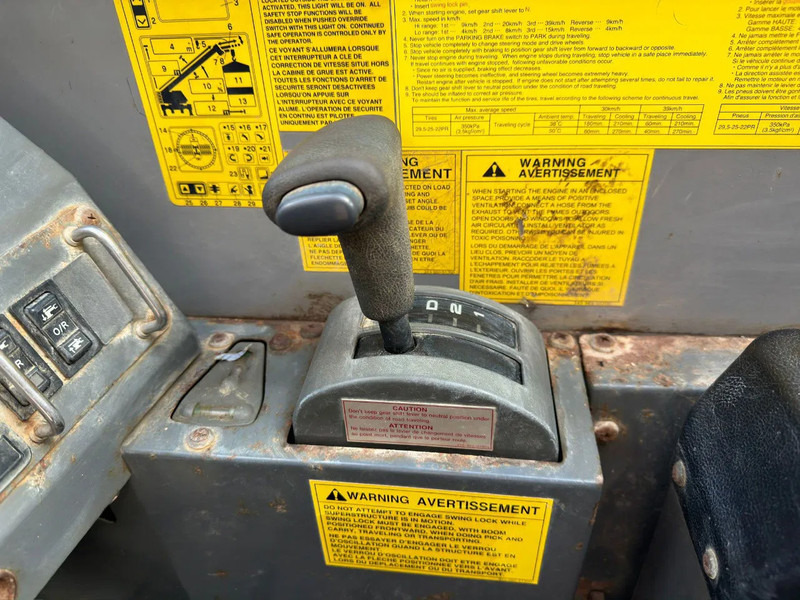

TRANSMISSION Electronically controlled full automatic transmission.

Torque converter driving full powershift with driving axle selector.

6 forward and 2 reverse speeds.

3 speeds - High range - 2 wheel drive ; 4 wheel drive

3 speeds - Low range - 4 wheel drive

WE CAN SHIP WORLDWIDE!!!!

WWW.GEURTSTRUCKS.COM

FOLLOW OUR INSTAGRAM, FACEBOOK AND TIKTOK TO WATCH OUR VIDEOS FROM OUR TRUCKS AND EQUIPMENT THAT IS FOR SALE.

WIR SPRECHEN DEUTSCH

WE SPEAK ENGLISH

HABLAMOS ESPANOL

Geurts Trucks’ general terms and conditions apply to all offers, quotations and agreements. All agreements with Geurts Trucks are governed by the law of the Netherlands and the Oost-Brabant Court, located in 's-Hertogenbosch, has exclusive jurisdiction to take cognizance of any disputes. You can find the full text of our general terms and conditions on our website: https://www.geurtstrucks.com/terms-and-conditions

More information

Year of manufacture: 2008

Drive: Wheel

Mast: telescopic (5 parts)

Mast length: 64 m

Make of bodywork: TADANO GR-700E-1-00211 ROUGH TERRAIN CRANE

CE mark: yes

Technical condition: very good

Visual appearance: very good

Price: On request
